RCC framed structure with masonry partitions and slab top height of 285 cm.
Internal Masonry -Good Quality solid / concrete / hollow bricks with protective cement plastering trowelled hard and levelled smooth..
External Masonry - High quality solid concrete block masonry with protective cement plaster trowelled hard and levelled smooth.
All wiring shall be of Finolex/Havells or equivalent brand, concealed in 19mm diameter, 2mm thick PVC conduit pipes.
1/18 copper wire shall be used for earthing using the loop system. Leakage Circuit Breaker and MCB shall be provided in each apartment. Lightning arrester and earth pit will be provided with separate earth pit for the elevators.
All switches shall be of MK / ABB / Schneider or equivalent make.
Flooring and Tiling

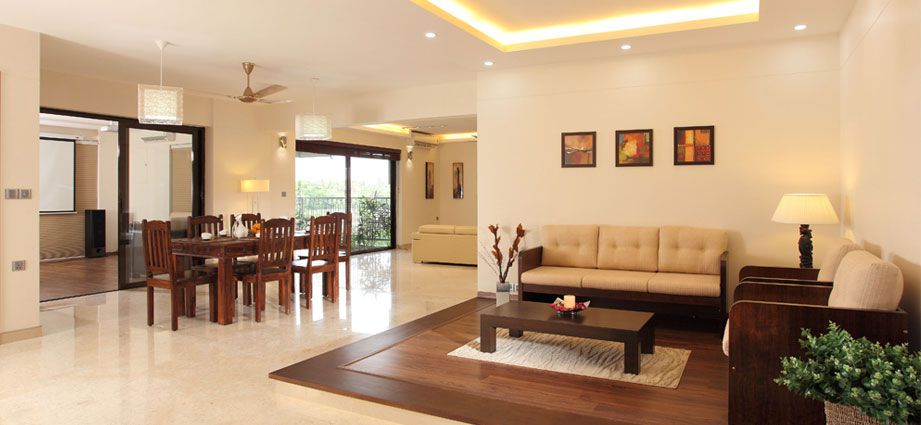

Living and Dining: Vitrified tiles, RAK or equivalent.
Kitchen: Vitrified tiles, RAK or equivalent.
Utility: Vitrified tiles, RAK or equivalent.
Bathroom: Glazed tile dado upto ceiling level and water repellent paint for dry areas. Anti skid floor tiles.
Bedroom: Vitrified tiles.

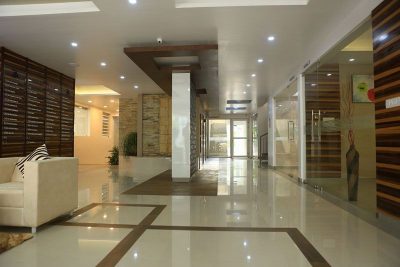

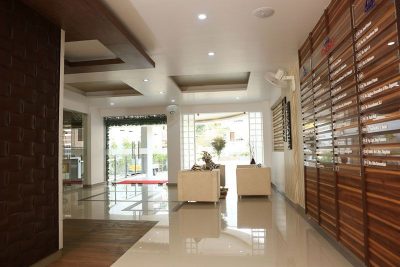

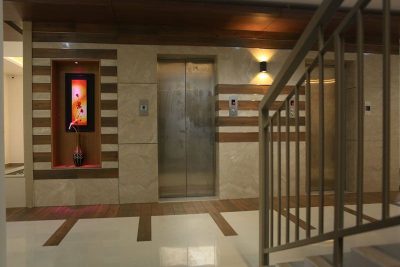

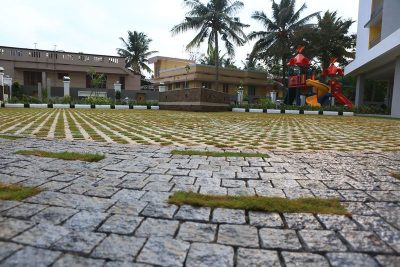

Common Areas: Architecturally designed flooring for common areas and flamed granite / vitrified tiles for staircase.
Balcony: Satin / Rustic finished vitrified tiles.
Concealed copper wiring. Adequate light points, fan points, 5 amps and 15 amps points, etc. with independent meters for each flat. Modular type switches. Provision for 3 phase electrical supply. Provision for cable TV in living room. Telephone conduit point in living room. Generator backup to common areas and to individual flats subject to a maximum of 700W to specific point. Automatic change over switch.
Doors and windows
Frames: All internal door frames shall be in good quality hardwood and front door frame shall be in teak.
Door Shutters: Front door shutter will be a designer teak wood one with 35mm thickness finished with Melamine / polyurethane coating. All door shutters shall be solid core flush / block board shutters.
Window Frames & Shutters: All windows and French window shall be of high quality UPVC / Aluminium.
Door Stoppers:Magnetic/concealed door stoppers shall be provided for the main and bedroom doors.
All hardware shall be in brush finished stainless steel. The main door shall be provided with a night latch of Godrej or equivalent make.
Sanitary and Plumbing
Wash Basins: Porcelain wash basins of Roca / Cera Premium or equivalent make shall be provided in all bathrooms. All basins shall be provided with 32mm waste coupling & CP bottle trap of standard make.
Faucets: Faucets: All faucets shall be CP, heavy body metal fittings of Jaguar / Grohe or equivalent. Provision for hot water connection shall be provided to the shower in each bathroom.
Health Faucets: Health faucets shall be provided in all bathrooms.
Water Closets: Western style porcelain EWC of Roca / Cera Premium or equivalent make shall be provided in all bathrooms.
Kitchen Sink:Stainless sink with drain board of high quality in kitchen.
Cockroach Traps: A stainless steel cockroach trap with detachable lid of Chilly or equivalent make provided in all bathrooms.
Plumbing: All water supply lines & drainage lines shall be in PPR/CPVC/PVC/ ASTM pipes. Sewage lines shall be in PVC.
Putty finished emulsion paint for internal walls and enamel paint for doors and window grills. External walls will be emulsion painted.
KWA water supply through sump and overhead tank in the kitchen subject to rules and regulations of KWA. Ground water supply from open well/bore well.
